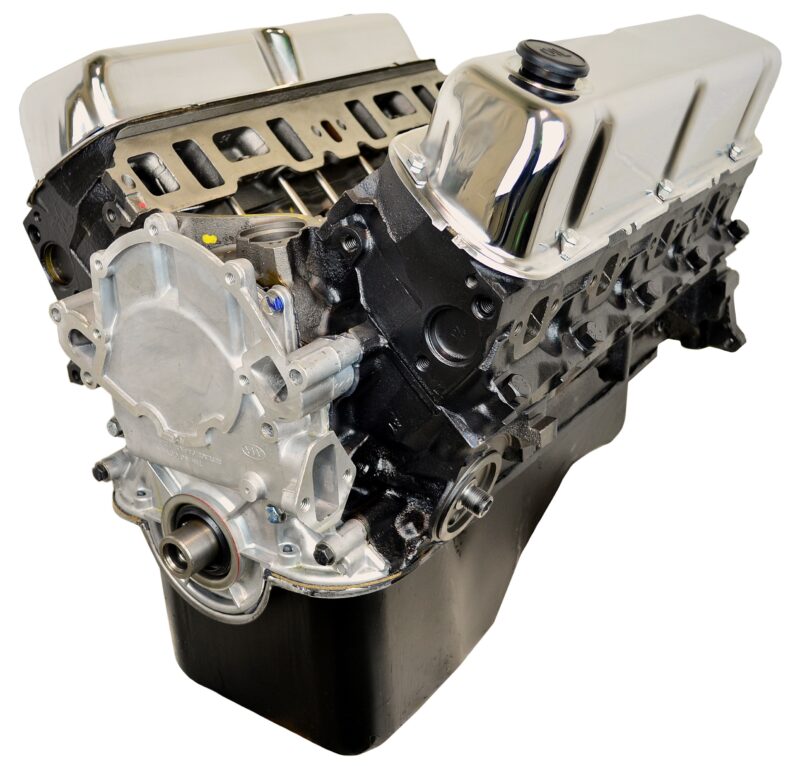

ATK HP79 Ford 302 Base Engine 300HP with Front Sump Oil Pan

$3,640.00

-

Lead Time: Core Issues No Solid ETA

Quantity

This will also add the following products to your cart:

  • $550 Core charge - $550.00

CONTACT US ABOUT THIS PRODUCT

Please enable JavaScript in your browser to complete this form.

Description

Engine Specifications:
• HP: 300
• TQ: 336
• Block: Seasoned OE roller block 1987-1995
• Bore/Stroke: up to 4.060” x 3.000”
• Displacement: 302CI
• Crankshaft: OE 1 piece seal external balance 50oz
• Rods: OE
• Pistons: Hypereutectic 9.1:1 compression
• Rings: Moly
• Camshaft: Hyd. Roller
• Cam Specs: 219/219 @50 .498in/.498ex 110LSA
• Timing Chain: Double roller
• Cylinder Heads: OE E5TE/E7TE 62cc 1.77/1.46
• Rocker Arms: Stamped steel 1.6 pedestal mount rockers
• Oil Pan: Front Sump
• Oil Pump: Melling high volume

Recommended Components:
• Balancer: External balance 50oz
• Flexplate/Flywheel: External balance 50oz
• Intake Manifold: Weiand dual plane #8020
• Distributor: Pro billet RTR (with upgraded melonite or steel gear)
• Water Pump: Early RH inlet standard rotation
• Carburetor: Edelbrock 650CFM #1806
• Fuel Pump: Holley mechanical 110GPH #12-289-11 or factory electric if installed in 1987-1995 mustang.
• Spark Plugs: Autolite #24
• Spark Plug Wires: 8mm

Engine Info:
• Oil: Conventional / Non Synthetic 10W30
• Oil Filter: Wix or K&N
• Timing: 34-36 Degrees with vacuum port plugged on carburetor
• Spark Plug Gap: .035”
• Firing Order: 13726548
• Octane: 91+
• Stall Converter: Stock
• Exhaust: 1 5/8 Headers



Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work for their application. Some modifications to the vehicle may be required using these and or other aftermarket parts. ATK reserves the right to substitute parts used in engines if necessary.
