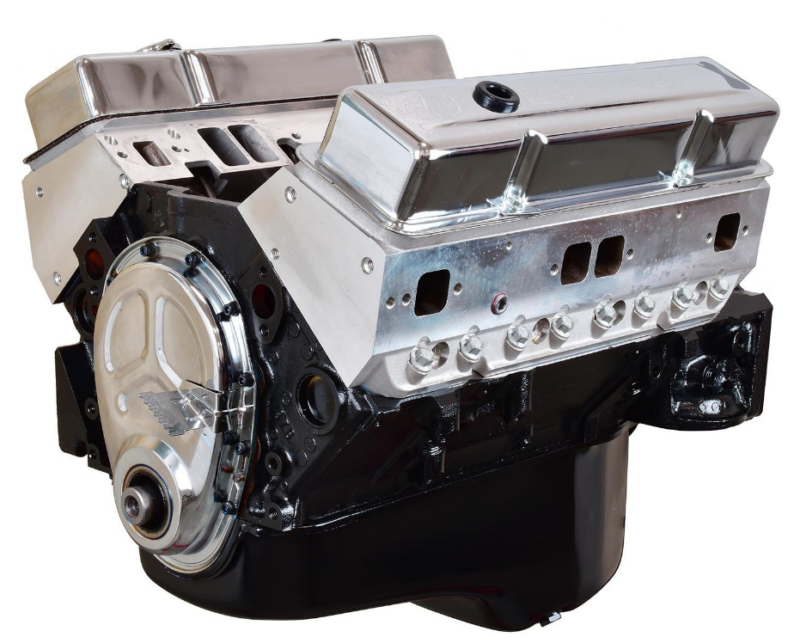

ATK HP89 Chevy 350 Base Engine 390HP

$3,799.00

-

Lead Time: Estimated: 4 - 6 weeks

Quantity

This will also add the following products to your cart:

  • $510 Core charge - $510.00
SKU: HP89 Categories: , ,

Description

Great crate engine with a noticeable idle, very street able with lots of power.

Engine Specifications:

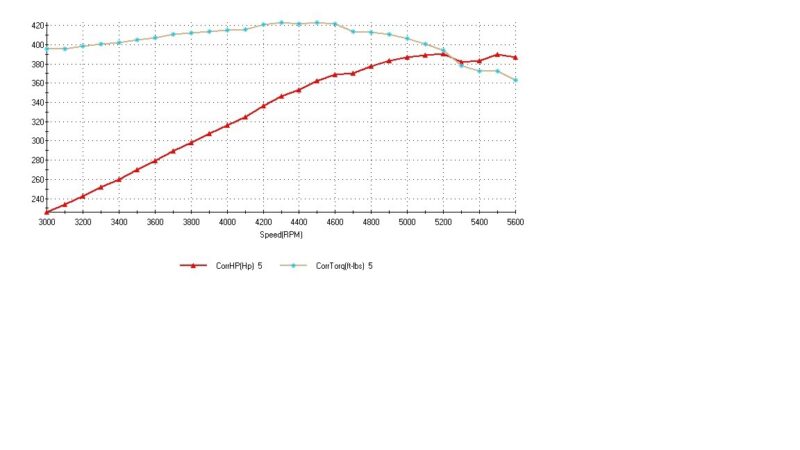

• HP: 390
• TQ: 420
• Block: OE roller block 4 bolt main 1pc seal 1996-2000
• Bore/Stroke: 4.040” x 3.480”
• Displacement: 350CI
• Crankshaft: OE Reground external balance rear of the crank/internal balance front of the crank
• Rods: OE powder metal 5.7”
• Pistons: Hypereutectic 10:1 Compression
• Rings: Moly
• Camshaft: Hyd. Roller
• Cam Specs: 220/224 @50 .528in/.536ex 110LSA
• Timing Chain: Double Roller
• Cylinder Heads: ATK High Performance aluminum with 2.020 in. /1.600 ex. valves
• Rocker Arms: Billet aluminum roller rockers 1.6 ratio
• Oil Pan: Rear sump 5qt (not for Chevelles with steering behind crossmember, some corvettes and 62-67 chevy II’s)
• Oil Pump: Melling STD Volume

Recommended Components:
• Flexplate/Flywheel: Externally Balanced – Pioneer #FRA-159
• Balancer: Internally Balanced – PowerBond #PB1046-N
• Intake Manifold: ATK dual plane intake
• Distributor: HEI (Iron Gear)
• Water Pump: OE long pump
• Carburetor: Quick Fuel 680CFM Vacuum secondary’s electric choke #HR-680
• Fuel Pump: Holley mechanical 110GPH #12-327-11
• Spark Plugs: Autolite #3923
• Spark Plug Wires: 8mm

Engine Info:
• Oil: Conventional / Non Synthetic 10W30
• Oil Filter: Wix or K&N
• Timing: 34-36 Degrees
• Spark Plug Gap: .035”
• Firing Order: 18436572
• Octane: 91+
• Stall Converter: 2200-2800
• Exhaust: 1 5/8 Headers



Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work in their application. Some modifications to the vehicle may be required using these and or other aftermarket parts. . ATK reserves the right to substitute parts used in engines if necessary.
